Provision Snom or Yealink devices (Hardware)

The Metis Hardware page allows you to provision devices with extension details, a range of other settings, firmwares and web interface passwords.

• Add device
• Manage devices
  • View settings
    • Settings
    • Firmware
    • Web interface password
• Delete device

Add device

The Add device panel lets you add a device to our Hardware Provisioning system. There is also an option to assign a Metis extension. After adding a device, you can manage additional settings, firmwares and web interface passwords.

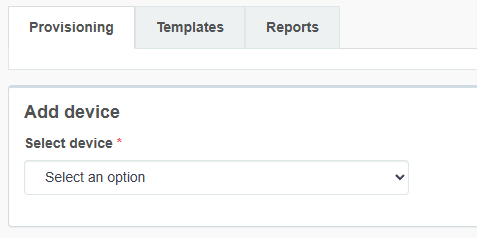

First, select your device's model name.

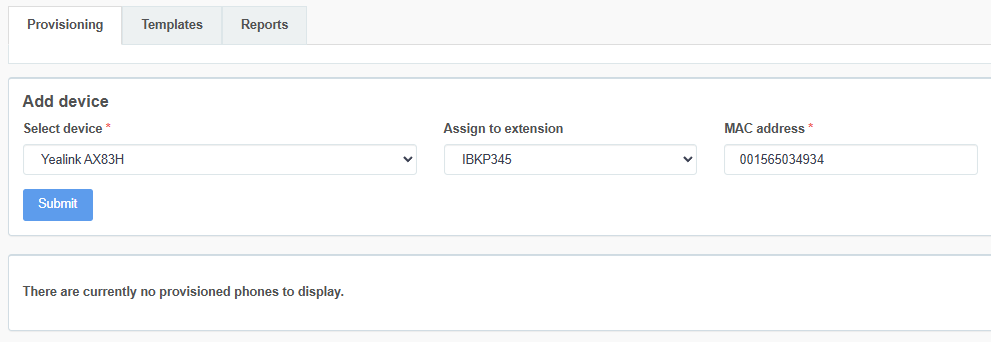

Then, select an extension (optional) and enter your device's MAC address. Click Submit to confirm.

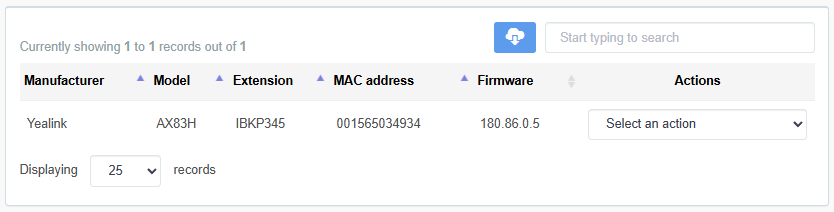

Manage devices

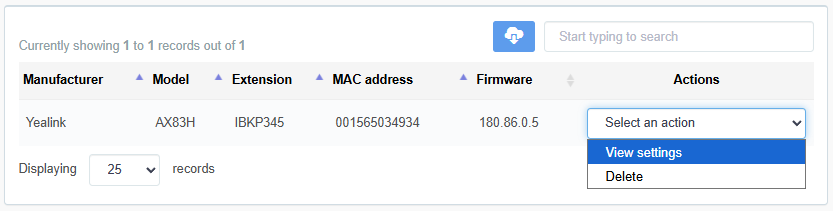

To manage a device's settings, open the Actions menu and select View settings.

View settings

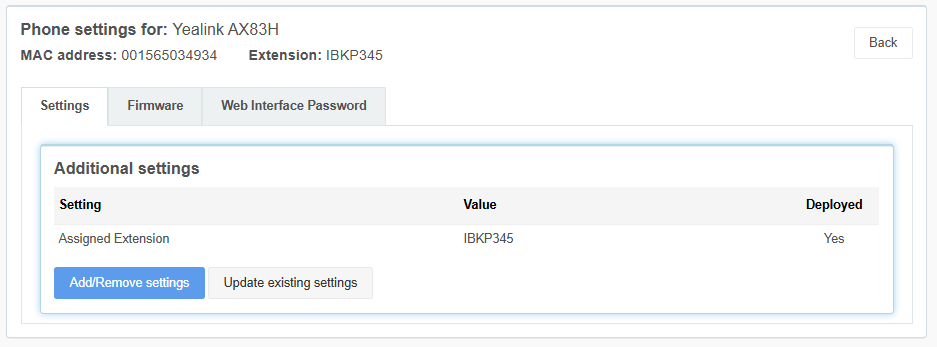

Settings

Existing settings are displayed on the page. To add more, click Add/Remove settings.

Select the setting(s) from the Available settings table and click the green arrow to move them to the Selected settings table.

To remove a selected setting, highlight it in Selected settings and click the red arrow.

Click Submit to confirm the selected settings.

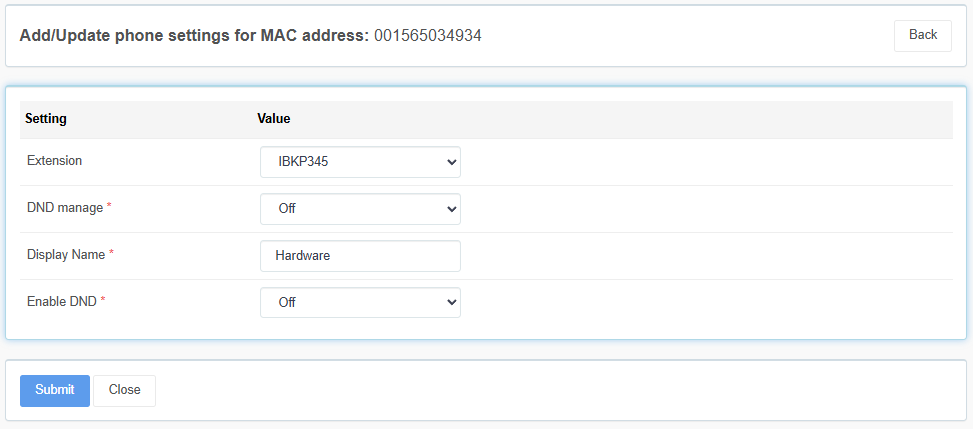

Then, assign values to the settings.

Some settings will have a dropdown menu displaying the allowed values, others will have text inputs where you can enter your own value.

Metis will validate the input but it is recommend to research the setting if unsure.

Click Submit to confirm.

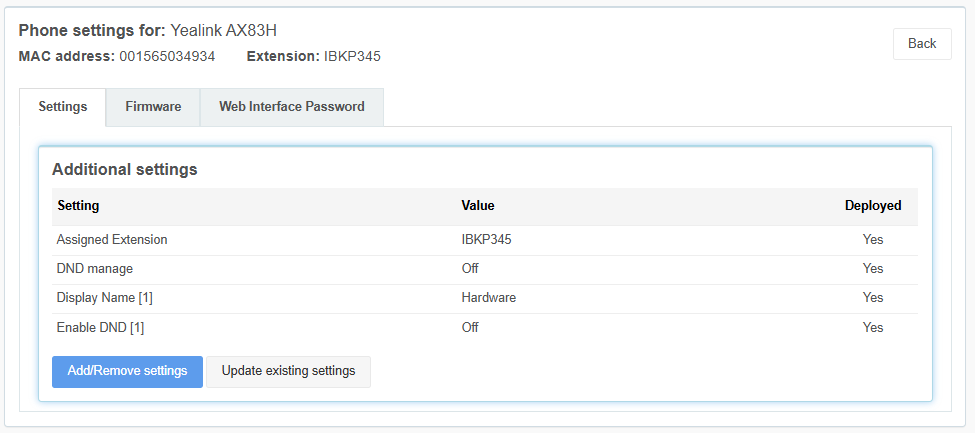

The new settings will be displayed back on the View Settings page.

Firmware

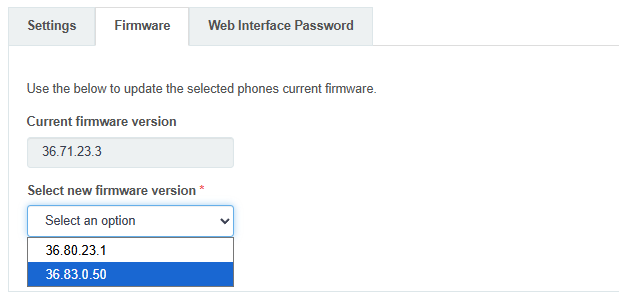

Select the Firmware tab to view and upgrade the device's firmware. Please note, you are not able to downgrade firmwares.

Select the new firmware version and click Submit to confirm.

Web Interface Password

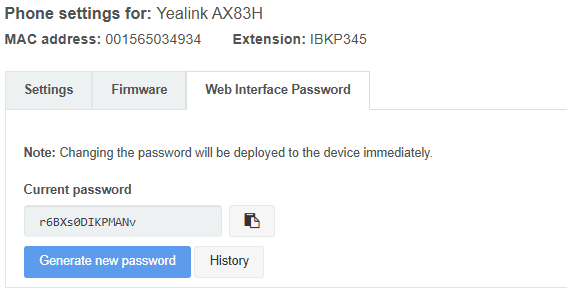

Select the Web Interface Password tab to view the existing web interface password.

If multiple web interface passwords have been generated, click the History button to view old passwords.

Click Generate new password to randomly generate a new password, and click Save and Deploy to confirm.

Delete device

Delete a device by selecting Delete from the Actions menu. A confirmation pop-up will appear, allowing you to confirm your decision.
